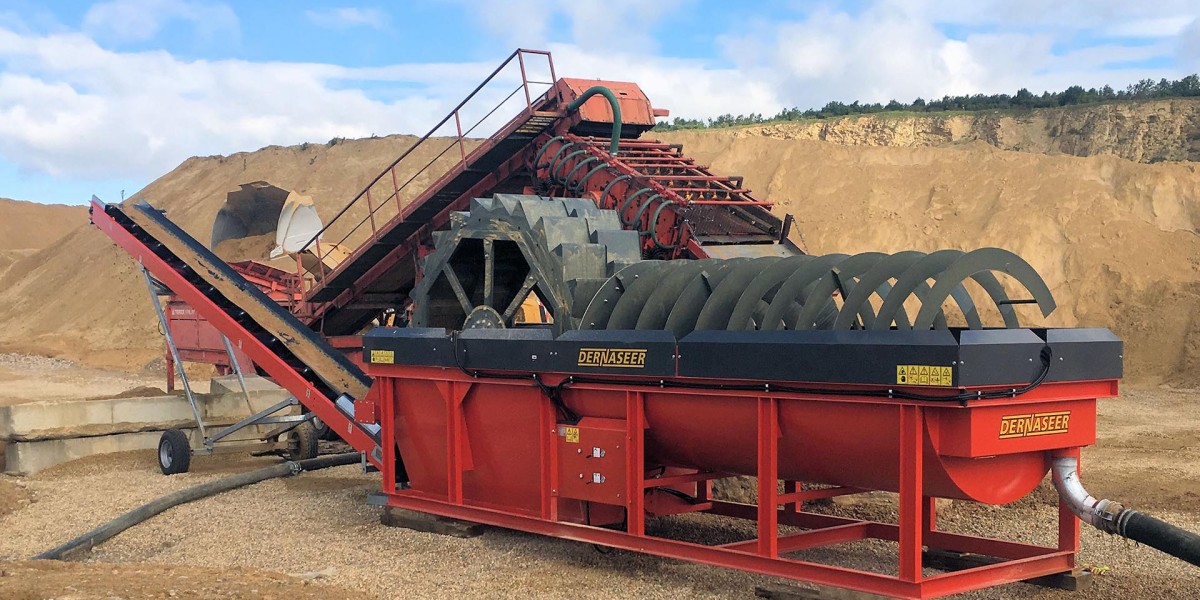

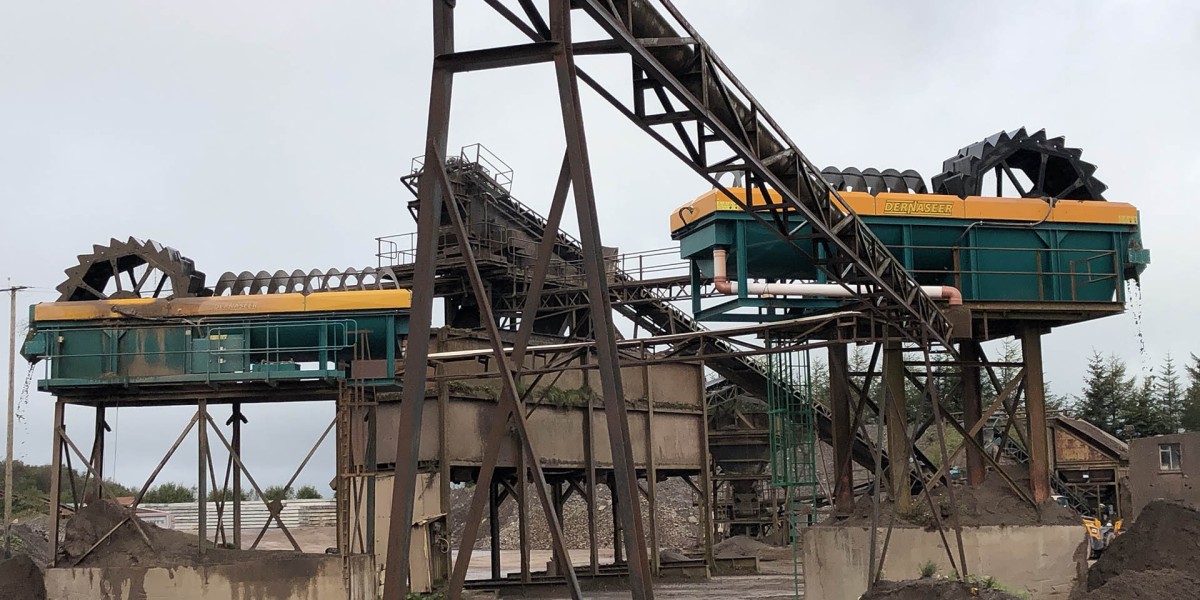

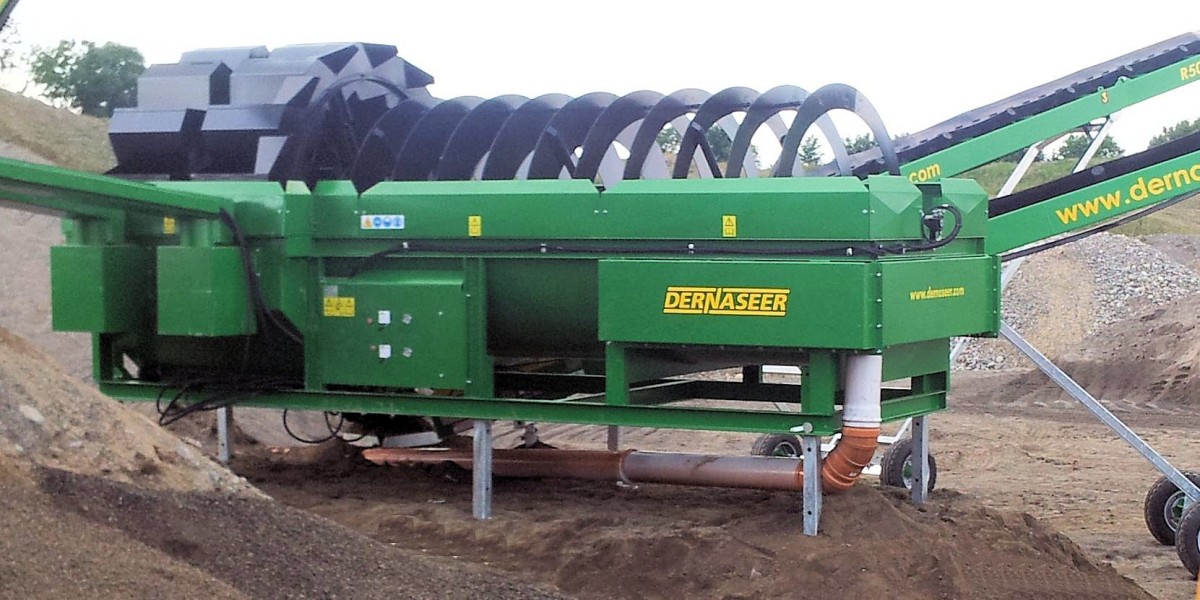

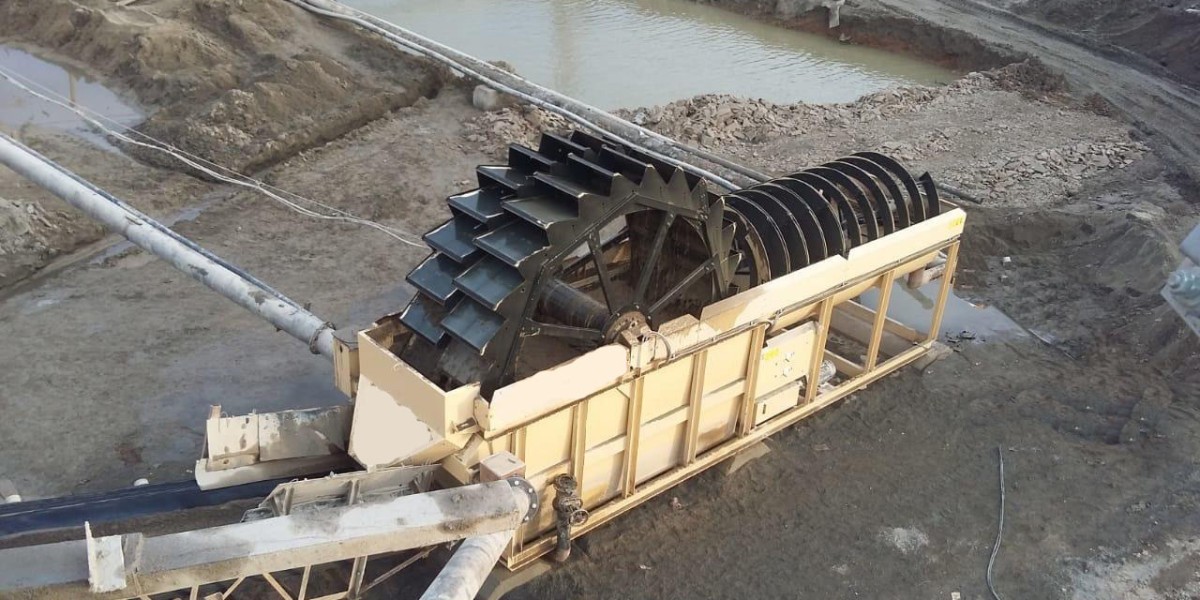

The DBW range of bucketwheel sandwashers remains as popular as ever. These machines are designed for the removal of clays, silts and slimes to produce up to 2 grades of sand.
The bucketwheel range can be driven hydraulically from many types of popular mobile washing plants or from its own optional electric hydraulic power pack.
Model |
Max |
Wheel |
No. of |
Screw |
Screw |
---|---|---|---|---|---|
DO75 | 80 TPH - Single | 2600mm | 28 | 2050mm | 3100mm |
DO95 | 100 TPH - Dual | 2600mm | 28 | 2130mm | 4100mm |
4814 | 120 TPH - Single | 3375mm | 48 | 2130mm | 4000mm |
5214 | 200 TPH - Single | 4300mm | 52 | 2130mm | 3900mm |
